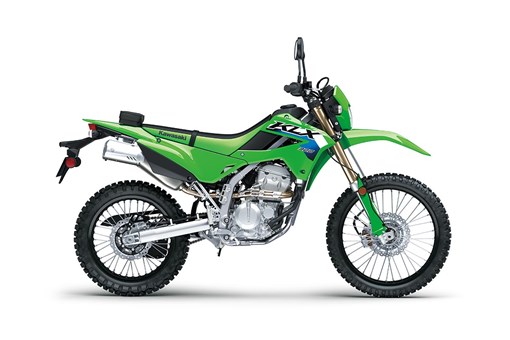

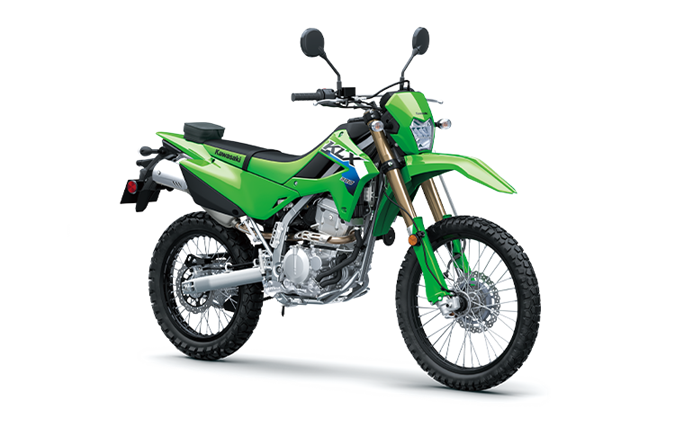

Model may not be exactly as shown
Enter a Postcode to get a ride away price.
MODEL SPECS |
All-digital
instrumentation
Sporty new styling and
LED headlight
| Maximum Power | 19.0 kW {26 PS} / 8,000 rpm |
| Maximum Torque | 24.0 Nm {2.4 kgfm} / 7,000 rpm |
| Engine | 4-stroke Single |
| Displacement | 292 cc |
| Bore x Stroke | 78.0 x 61.2 mm |
| Compression Ratio | 11.1:1 |
| Valve System | DOHC, 4 valves |
| Fuel System | Fuel injection: ø34 mm x 1 |
| Ignition | Digital CDI |
| Starting | Electric |
| Cooling | Liquid-cooled |
| Lubrication | Forced lubrication, wet sump |
| Transmission | 6-speed, return |
| Primary Reduction Ratio | 2.800 (84/30) |
| Gear Ratio: 1st | 3.000 (30/10) |
| Gear Ratio: 2nd | 2.000 (30/15) |
| Gear Ratio: 3rd | 1.500 (27/18) |
| Gear Ratio: 4th | 1.250 (25/20) |
| Gear Ratio: 5th | 1.050 (21/20) |
| Gear Ratio: 6th | 0.952 (20/21) |
| Final Reduction Ratio | 2.857 (40/14) |
| Clutch | Wet multi-disc, manual |
| Final Drive | Chain |
| Frame | Perimeter, high tensile steel |
| Front Suspension | ø43 mm inverted telescopic fork with adjustable compression damping |
| Rear Suspension | Uni Trak, gas-charged shock with piggyback reservoir, adjustable compression and rebound damping, and adjustable spring preload |
| Front Wheel Travel | 285 mm |
| Rear Wheel Travel | 289 mm |
| Rake | 26.1° |
| Trail | 102 mm |
| Steering Angle (L/R) | 41° / 41° |
| Front Tyre | 3.00-21 51P |
| Rear Tyre | 4.60-18 63P |
| Front Brake/s | ø250 mm petal disc |
| Front Caliper/s | Twin-piston |
| Rear Brake | ø240 mm petal disc |
| Rear Caliper | Single-piston |
| Dimensions (LxWxH) | 2,185 x 820 x 1,220 mm |
| Wheelbase | 1,440 mm |
| Road Clearance | 315 mm |
| Seat Height | 935 mm |
| Curb Weight* | 137 kg |
| Estimated Dry Weight** | 128 kg |
| Fuel Capacity | 7.5 litres |
| Model Code | KLX300HTFNN |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.
Specifications subject to change.
