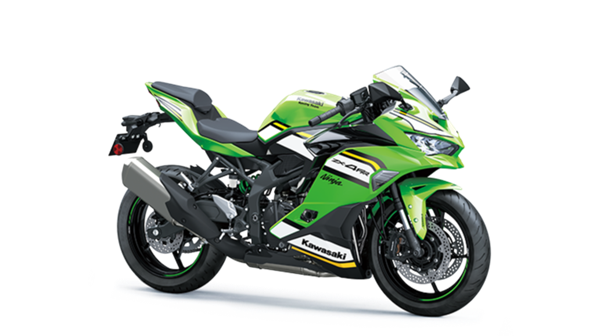

NINJA ZX-4RR KRT EDITION

AWAKEN YOUR SUPERSPORT

Lime Green / Ebony

Lime Green / Ebony

Ninja ZX-10R-style

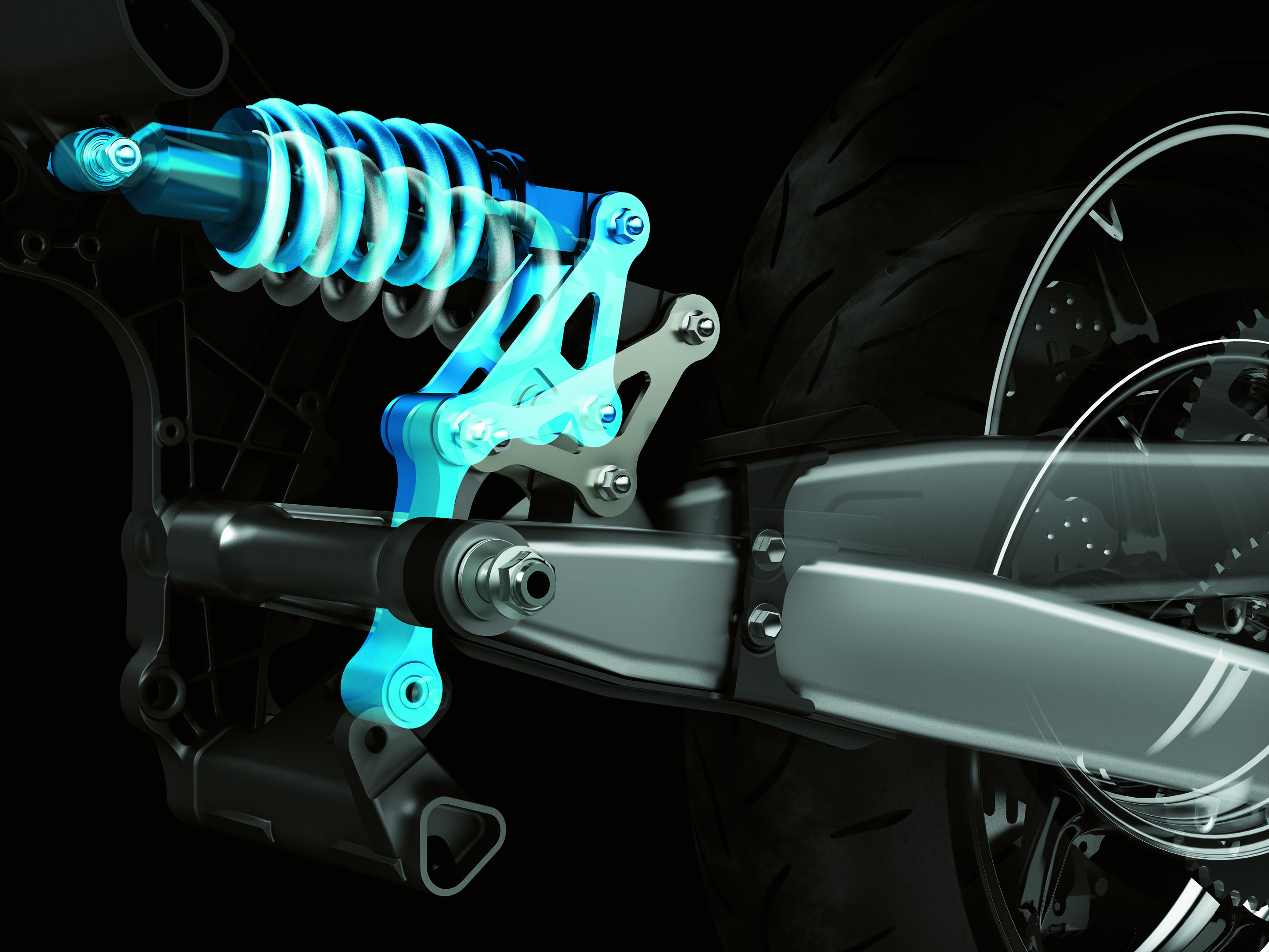

Rear suspension

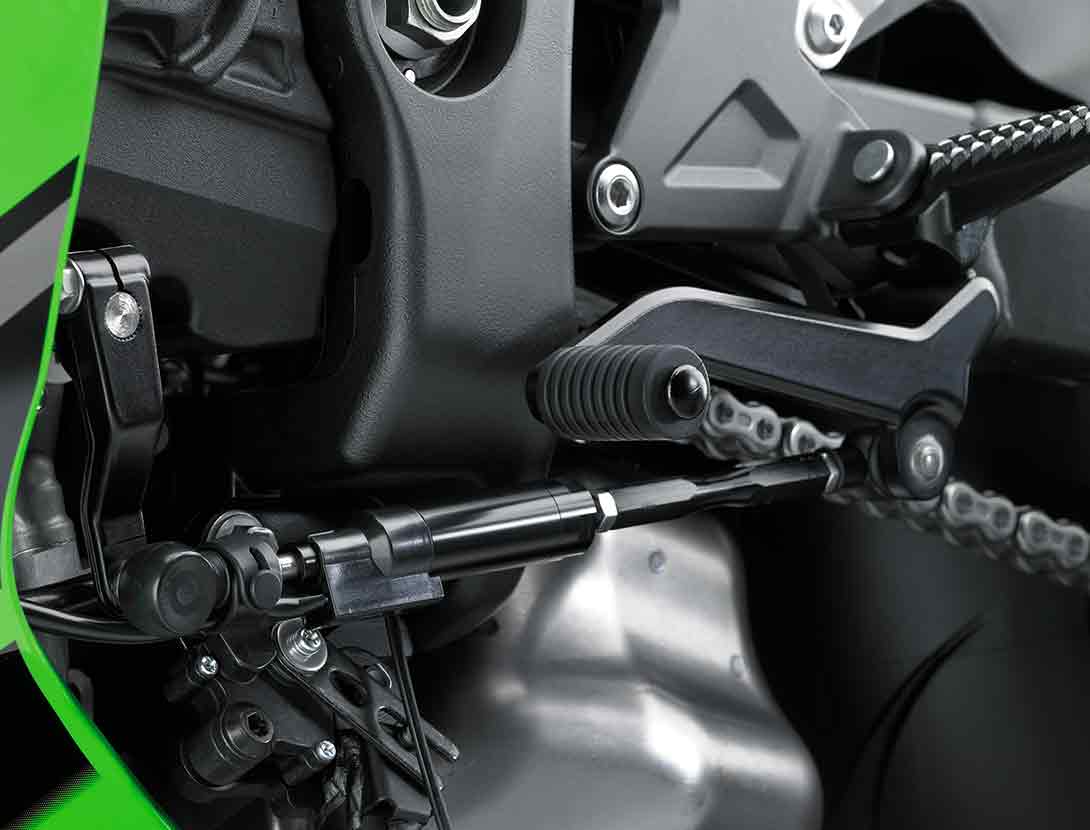

Dual-direction
Kawasaki Quick Shifter
Maximum Power 55.0 kW {75 PS} / 14,500 rpm
Maximum Power with Ram Air 56.7 kW {77 PS} / 14,500 rpm
Maximum Torque 37.6 Nm {3.8 kgfm} / 12,500 rpm
Engine 4-stroke In-Line Four
Displacement 399 cc
Bore x Stroke 57.0 x 39.1 mm
Compression Ratio 12.3:1
Valve System DOHC, 16 valves

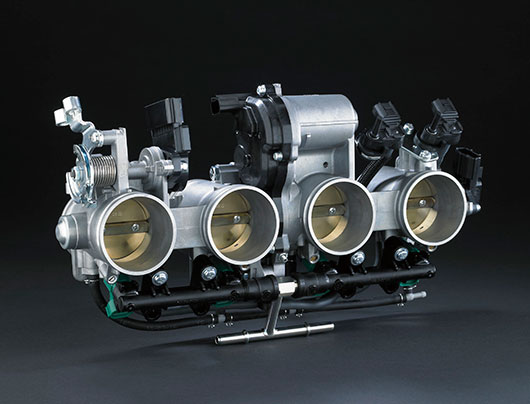

Fuel System Fuel injection: ø34 mm x 4
Ignition Digital
Starting Electric
Cooling Liquid-cooled
Lubrication Forced lubrication, wet sump
Transmission 6-speed, return
Primary Reduction Ratio 2.029 (69/34)
Gear Ratio: 1st 2.929 (41/14)
Gear Ratio: 2nd 2.056 (37/18)
Gear Ratio: 3rd 1.619 (34/21)
Gear Ratio: 4th 1.333 (32/24)
Gear Ratio: 5th 1.154 (30/26)
Gear Ratio: 6th 1.037 (28/27)
Final Reduction Ratio 3.429 (48/14)

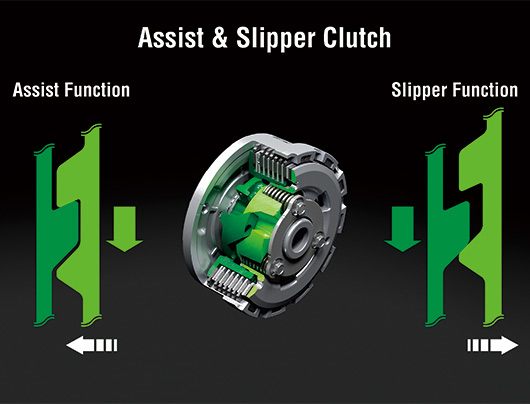

Clutch Wet multi-disc, manual
Final Drive Chain
Frame Trellis, high-tensile steel
Front Suspension ø37 mm inverted fork (SFF-BP) with spring preload adjustability and top-out springs
Rear Suspension Horizontal Back-link, BFRC lite gas-charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability, and top-out spring
Front Wheel Travel 120 mm
Rear Wheel Travel 124 mm
Rake 23.5°
Trail 97 mm
Steering Angle (L/R) 35° / 35°
Front Tyre 120/70ZR17M/C (58W)
Rear Tyre 160/60ZR17M/C (69W)
Front Brake/s Dual semi-floating ø290 mm discs
Front Caliper/s Dual radial-mount, monobloc, opposed 4-piston
Rear Brake ø220 mm disc
Rear Caliper Single-piston
Dimensions (LxWxH) 1,990 x 765 x 1,110 mm
Wheelbase 1,380 mm
Road Clearance 135 mm
Seat Height 800 mm
Curb Mass 188 kg
Fuel Capacity 15 litres
Model Code ZX400SRFNN

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.

Specifications subject to change.
