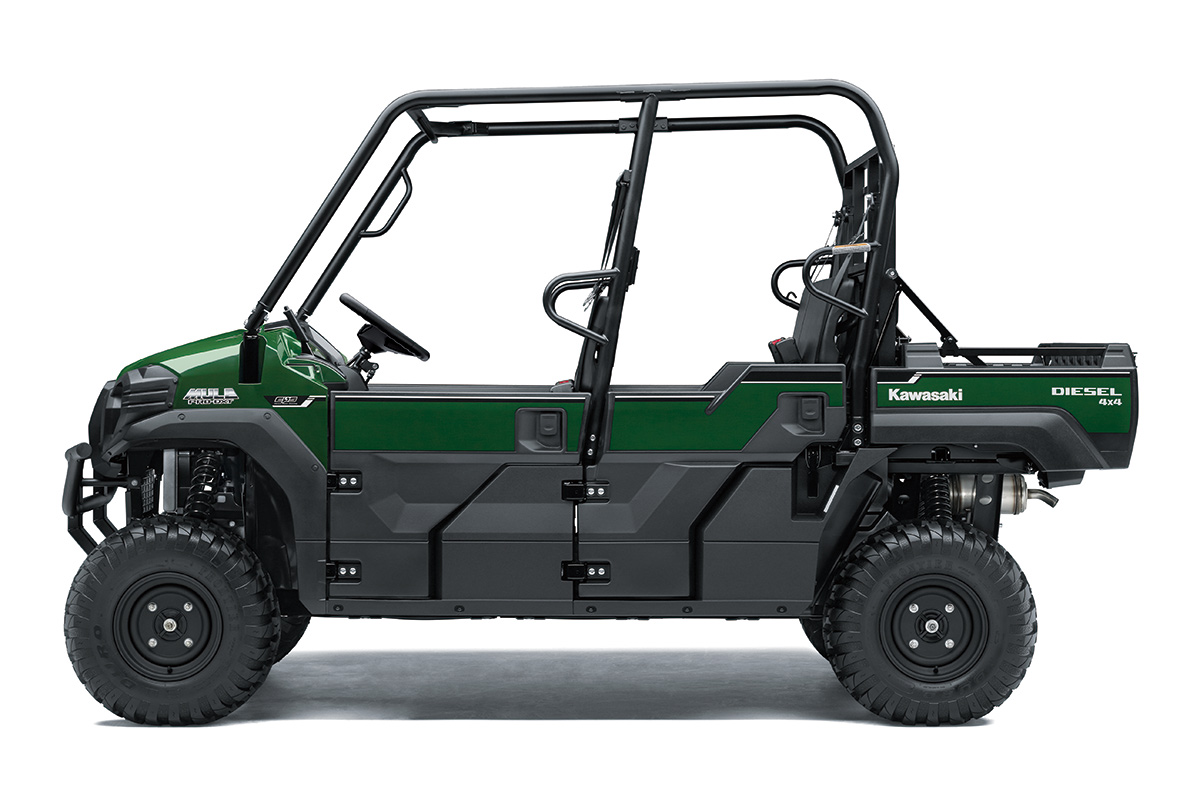

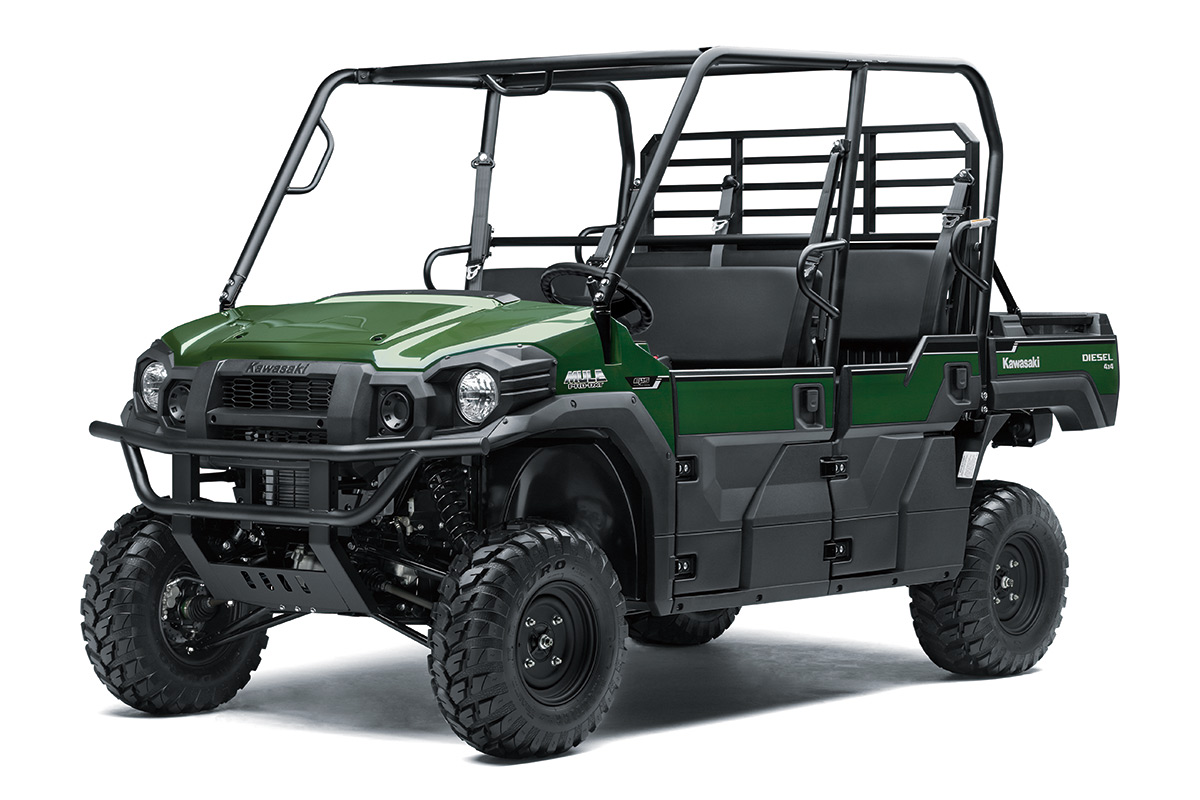

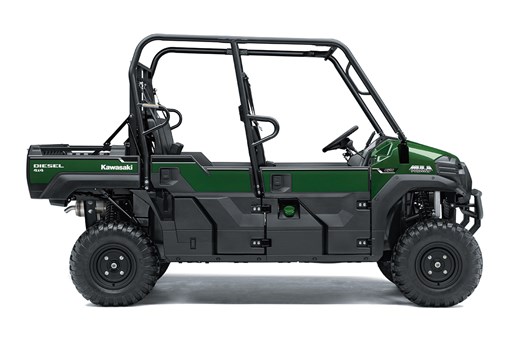

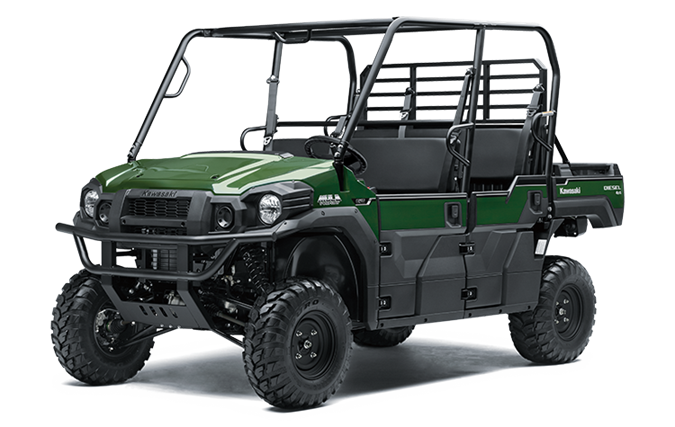

MULE PRO-DXT DIESEL
Do More with Diesel
Optional Genuine Kawasaki Accessories are Shown. These Accessories are sold separately and are not included in the model purchased.
MODEL SPECS |
| Maximum Power | 18 kW {24 PS} / 3,600 rpm |
| Maximum Torque | 52 Nm {5.3 kgfm} / 2,400 rpm |
| Engine | 4-stroke In-Line 3-cylinder diesel |
| Displacement | 993 cc |
| Bore x Stroke | 74.0 x 77.0 mm |
| Compression Ratio | 23.5:1 |
| Valve System | OHV |
| Fuel System | In-line injection pump |
| Starting | Electric |
| Cooling | Liquid-cooled |
| Lubrication | Forced lubrication, wet sump |
| Transmission | Dual range (high/low) CVT with reverse |
| Primary Reduction Ratio | 3.334 ~ 0.756 (belt converter) |
| Gear Ratio: Forward (High) | 1.952 (34/33 x 36/19) |
| Gear Ratio: Forward (Low) | 3.876 (45/22 x 36/19) |
| Gear Ratio: Reverse | 3.009 (27/17 x 36/19) |
| Final Reduction Ratio: Front | 6.382 (31/17 x 35/10) |
| Final Reduction Ratio: Rear | 6.245 (31/21 x 55/13) |
| Final Drive | 2WD/4WD, shaft, dual-mode differential |
| Frame | Ladder type, tubular steel |
| Front Suspension | Double wishbone |
| Rear Suspension | Double wishbone |
| Front Wheel Travel | 222 mm |
| Rear Wheel Travel | 217 mm (left), 220 mm (right) |
| Steering | Rack and pinion with Electric Power Steering |
| Rake | 4.4° |
| Steering Angle (L/R) | 40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT) |
| Front Tyres | 26 x 9.00-12 4PR |
| Rear Tyres | 26 x 11.00-12 4PR |
| Front Brakes | Dual ø212 mm discs |
| Front Calipers | Two-piston |
| Rear Brake/s | Dual ø212 mm discs |
| Rear Caliper/s | Single-piston |
| Parking Brake | Dual discs (mechanical) |
| Dimensions (LxWxH) | 3,385 x 1,625 x 1,970 mm |
| Wheelbase | 2,345 mm |
| Road Clearance | 260 mm |
| Seat Height | 880 mm (front), 965 mm (rear) |
| Curb Weight* | 881 kg |
| Estimated Dry Weight** | 846 kg |
| Fuel Capacity | 30 litres |
| Tread Front / Rear | 1,389 mm / 1,321 mm |
| Turning Radius | 4.8 m |
| Cargo Bed Dimensions (LxWxH): 6-Person Mode | 560 x 1,363 x 279 mm |
| Cargo Bed Dimensions (LxWxH): 3-Person Mode | 1,085 x 1,363 x 279 mm |
| Cargo Bed Capacity: 6-Person Mode | 158 kg |
| Cargo Bed Capacity: 3-Person Mode | 453 kg |
| Seating Capacity | 3 or 6 |
| Vehicle Load Capacity | 714 kg |
| Towing Capacity | 907 kg |
| Lighting | 2x halogen headlights |
| Model Code | KDT1000BRFNN |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.
Specifications subject to change.
