MODEL SPECS |
Click on a technology to learn more.
| Engine Management Technology |
| Chassis Management Technology |

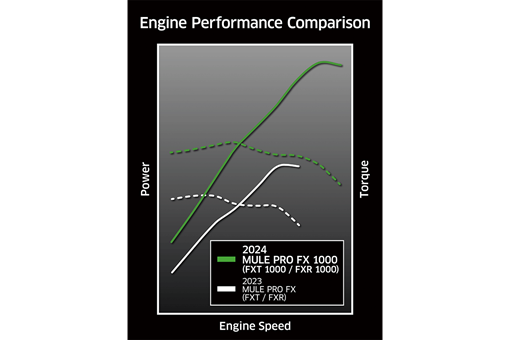

| Maximum Power | 52 kW {71 PS} / 6,500 rpm |
| Maximum Torque | 83 Nm {8.5 kgfm} / 4,500 rpm |

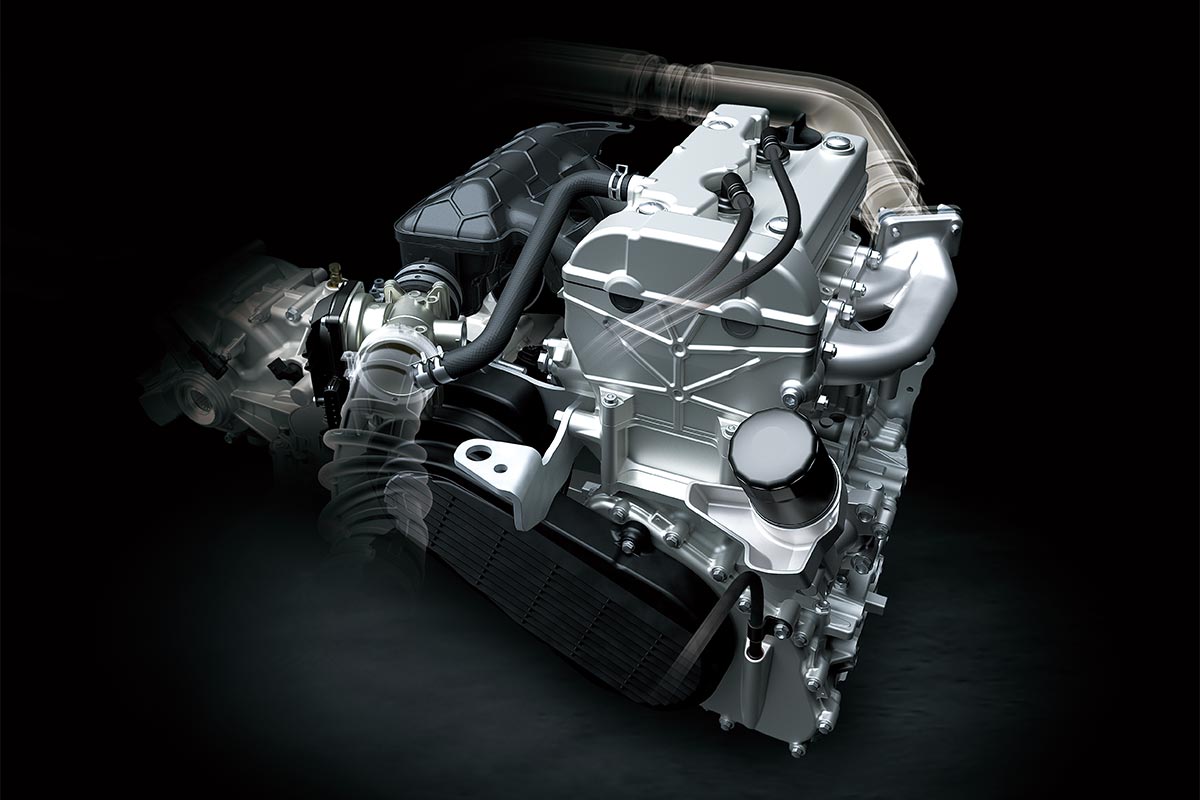

| Engine | 4-stroke Parallel Twin |
| Displacement | 999 cc |
| Bore x Stroke | 92.0 x 75.1 mm |
| Compression Ratio | 10.1:1 |
| Valve System | DOHC, 4 valves per cylinder |
| Fuel System | Fuel injection: ø38 mm x 1 |
| Ignition | Digital |
| Starting | Electric |
| Cooling | Liquid-cooled |

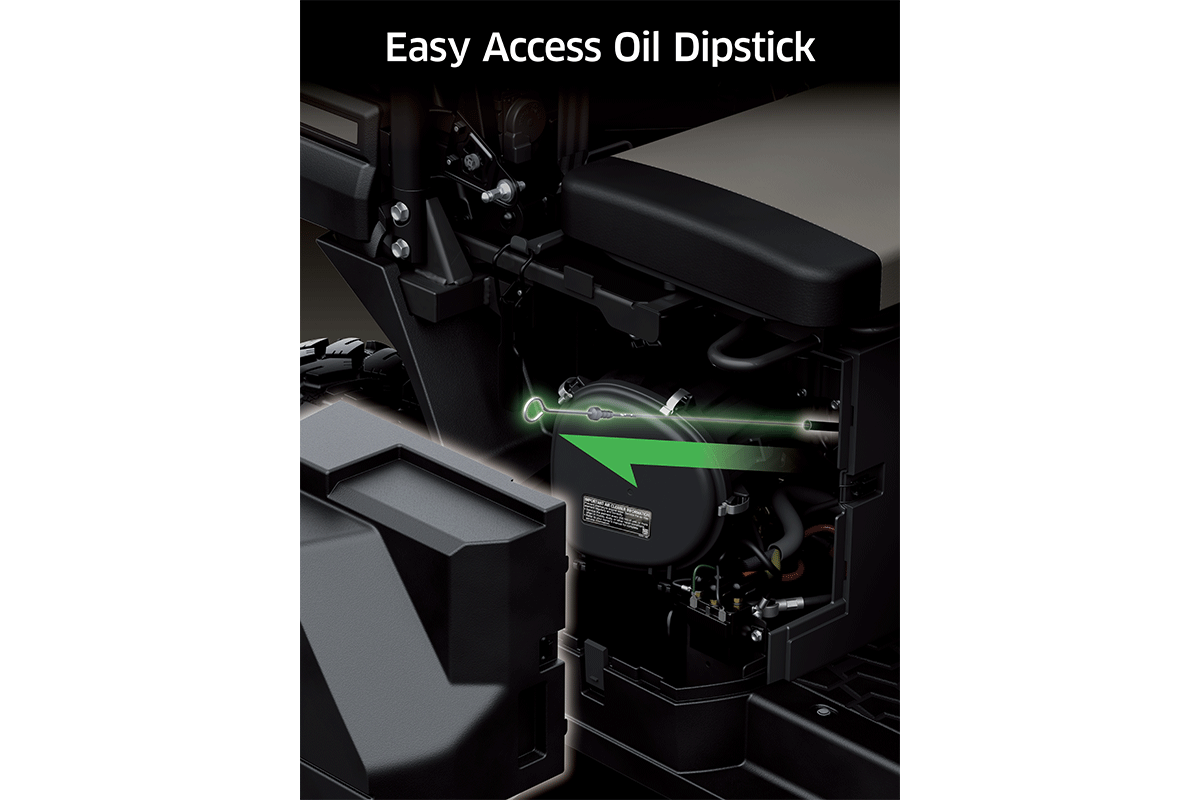

| Lubrication | Forced lubrication, wet sump |
| Transmission | Dual-range (high/low) CVT with reverse |
| Primary Reduction Ratio | 3.28 ~ 0.70 (belt converter) |
| Gear Ratio: Forward (High) | 1.668 (34/33 x 34/21) |
| Gear Ratio: Forward (Low) | 3.312 (45/22 x 34/21) |
| Gear Ratio: Reverse | 2.571 (27/17 x 34/21) |
| Final Reduction Ratio: Front | 6.382 (31/17 x 35/10) |
| Final Reduction Ratio: Rear | 6.245 (31/21 x 55/13) |
| Final Drive | 2WD/4WD, shaft, dual-mode differential |
| Frame | Ladder type, tubular steel |

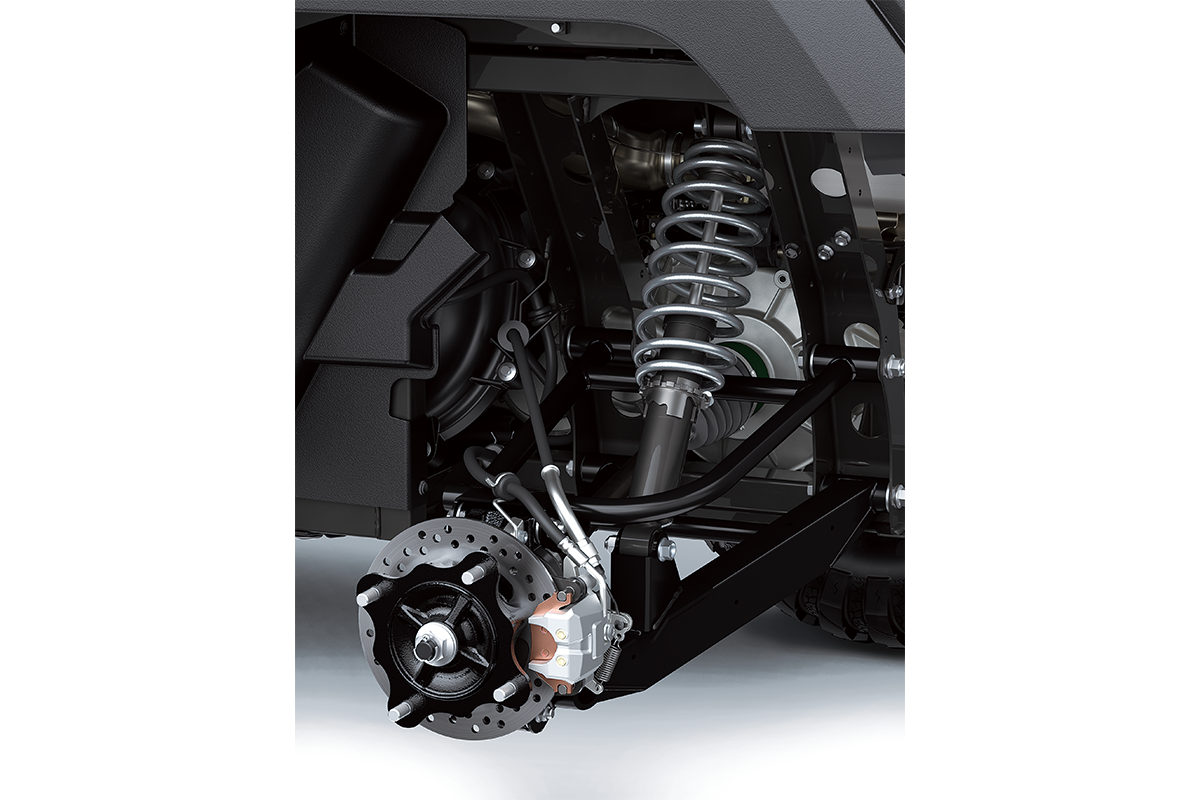

| Front Suspension | Double wishbone |

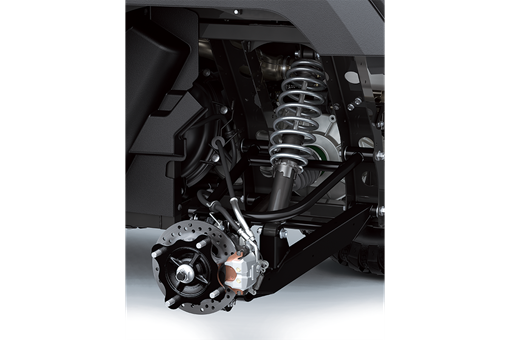

| Rear Suspension | Double wishbone |

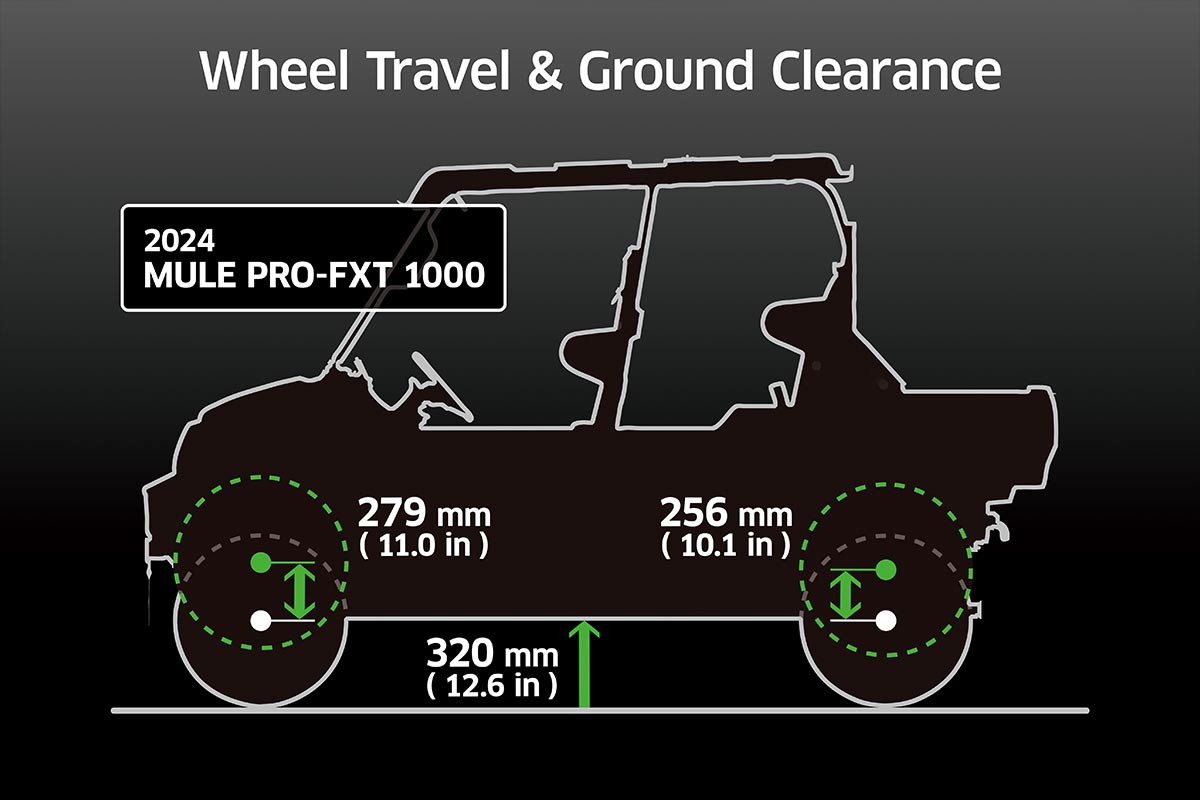

| Front Wheel Travel | 279 mm |
| Rear Wheel Travel | 256 mm |
| Steering | Rack and pinion with Electric Power Steering |
| Rake | 3.7° |
| Trail | 20 mm |
| Steering Angle (L/R) | 40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT) |
| Front Tyres | 26 x 9.00R12 4PR |
| Rear Tyres | 26 x 11.00R12 4PR |
| Front Brakes | Dual ø212 mm discs |
| Front Calipers | Two-piston |
| Rear Brake/s | Dual ø212 mm discs |
| Rear Caliper/s | Single-piston |
| Parking Brake | Dual discs (mechanical) |
| Dimensions (LxWxH) | 3,450 x 1,625 x 2,055 mm |
| Wheelbase | 2,345 mm |
| Road Clearance | 295/320 mm (standard/max preload) |
| Seat Height | 915 mm (front), 1,000 mm (rear) |
| Curb Weight* | 868 kg |
| Estimated Dry Weight** | 834 kg |
| Fuel Capacity | 30 litres |
| Tread Front / Rear | 1,373 mm / 1,307 mm |
| Turning Radius | 4.8 m |
| Cargo Bed Dimensions (LxWxH): 6-Person Mode | 560 x 1,363 x 279 mm |
| Cargo Bed Dimensions (LxWxH): 3-Person Mode | 1,085 x 1,363 x 279 mm |
| Cargo Bed Capacity: 6-Person Mode | 158 kg |
| Cargo Bed Capacity: 3-Person Mode | 453 kg |

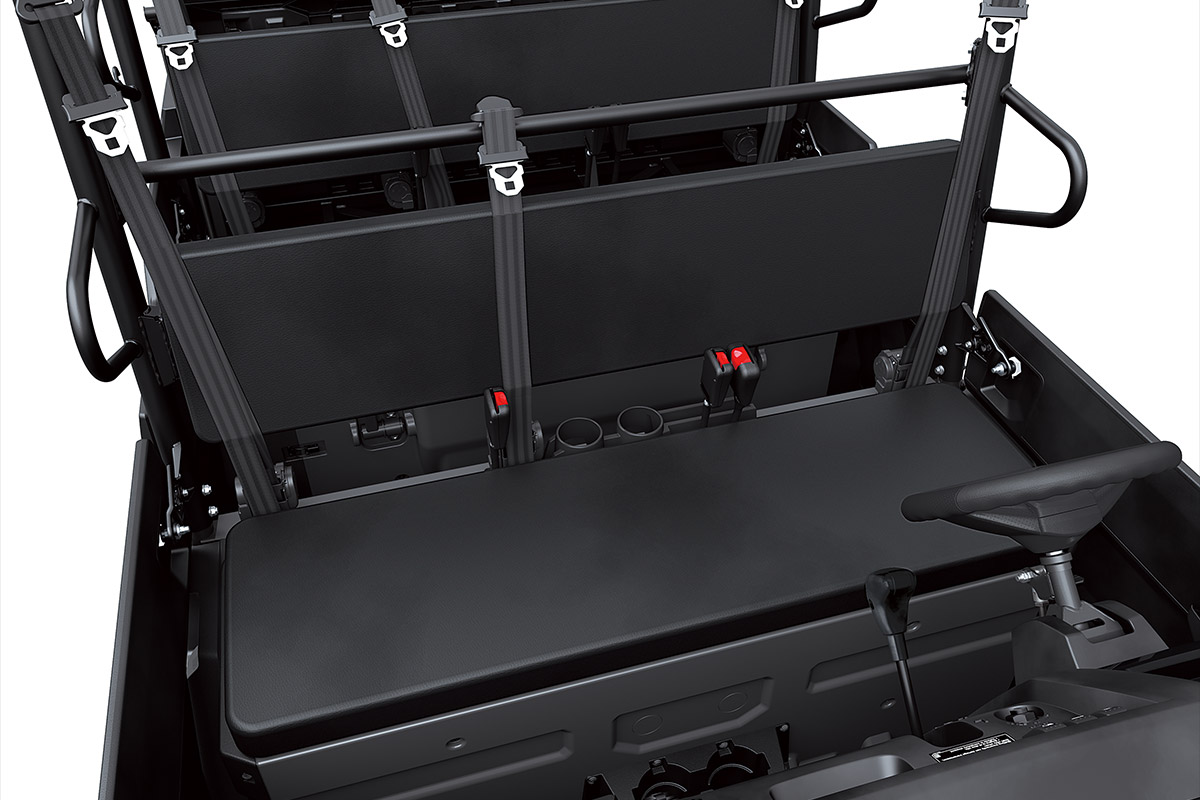

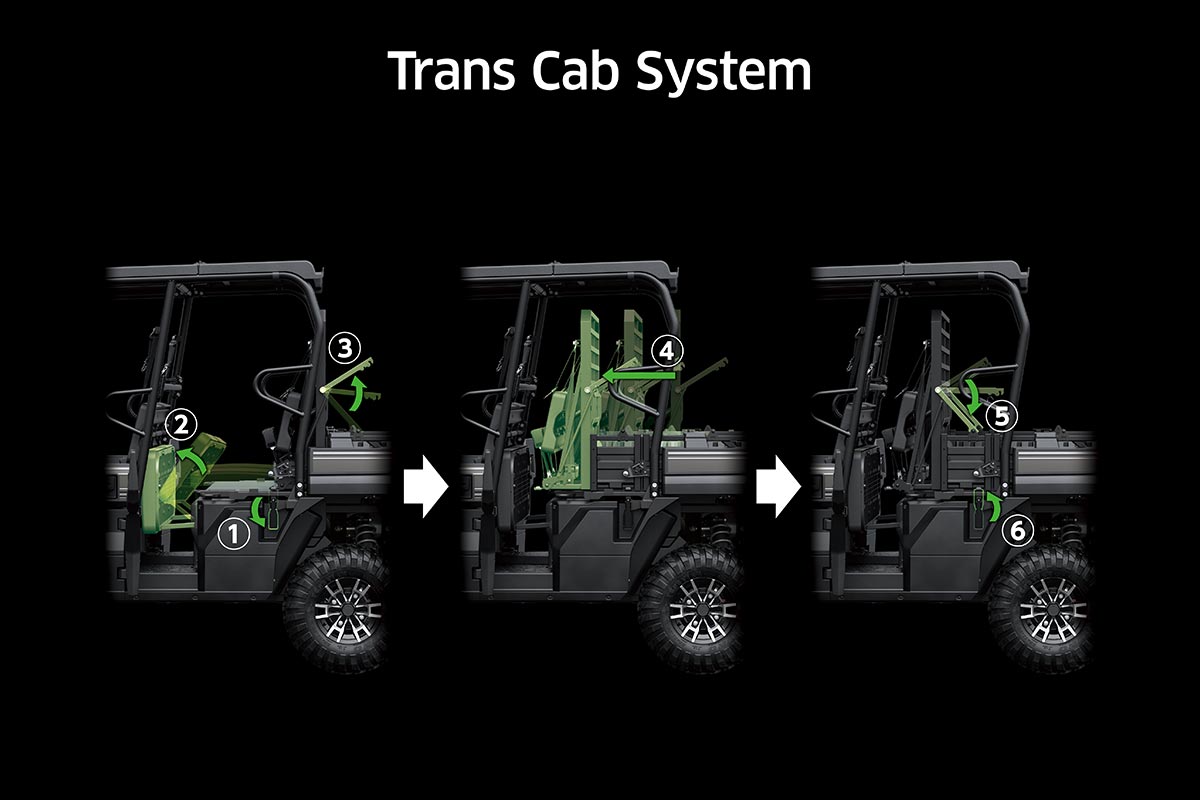

| Seating Capacity | 3 or 6 |
| Vehicle Load Capacity | 733 kg |
| Towing Capacity | 907 kg |
| Lighting | 2x halogen, 2x LED headlights |
| Model Code | KAT1000ARFNN |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.
Specifications subject to change.
FIND A KAWASAKI DEALER IN YOUR AREA
Dealer Name, Postal Code or City, Town
SIMILAR MODELS |
3- TO 6-PASSENGER
MULE PRO-FXT
MULE PRO-DXT DIESEL
MULE PRO-FXT 1000
Kawasaki’s fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions.
Electronic throttle valves also enable more precise control of electronic engine management systems like S-KTRC and KTRC, and allow the implementation of electronic systems like KLCM, Kawasaki Engine Brake Control, and Electronic Cruise Control.
Electronic Throttle Valves
